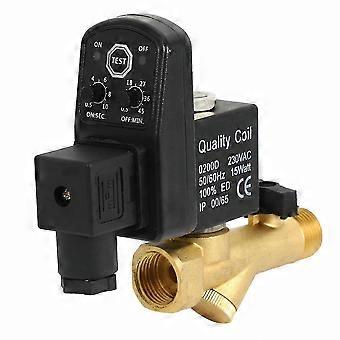

Name: Electronic Drain Valve Indicator Lamp: LED indicating on/off Voltage Range: 10% Protection Grade: IP65 Insulation: Class H Maximum Working Pressure: 1.6 MPa Maximum Temperature: 90C Ambient Temperature: -40C to 60C Maximum Current Consumption: 4 mA Supply Voltage: 24240 V AC/DC, 50/60 Hz Discharge Time (ON): 0.510 seconds Time Interval (OFF): 0.545 minutes Widely used in filters, separators, dryers, gas tanks, drip legs, and other compressed air system components. Clean the compressed air system before installation. Pay attention to the direction of the valve during installation: outlet must not be blocked. Supply voltage must match the drain valve voltage requirement. When using DC, the positive pole must be connected to connector 1. The drain valve comes with a pre-attached cable: brown is L (live), blue is N (neutral), yellow-green is ground (GND). Tighten the screws on the terminal box securely to prevent water ingress. Warning: When installing the electronic drain valve, ensure: - Compressed air has been fully released (system is depressurized). - Power supply is switched off. Color: Gold + Black Material: Metal Size: Aperture: 5 mm Inlet/Outlet Port Size: 1/2 inch Package Contents: 1 x Electronic Drain Valve Note: Other products are not included. Lighting and display settings may cause slight color variations between the image and the actual item. Measurement error allowed is 13 cm.
