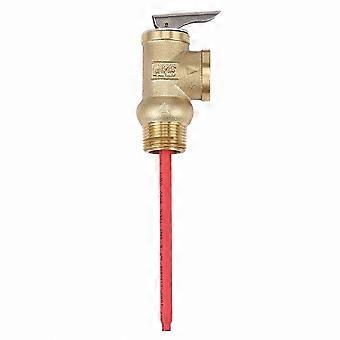

Introduction: Temperature and Pressure Safety Valves (T/P Valves) 0.7 MPa = 102 PSI Detailed introduction: Temperature and pressure relief valves are suitable for use with various water heaters, including solar, electric, and heat pump systems, as well as boilers and other heating applications. The valve automatically releases excess temperature and pressure, providing dual safety protection. It serves as a critical safety component for pressurized water heating systems. Features: Safety relief valves are commonly used to regulate pressure in heating system boilers, domestic hot water storage tanks, and general water systems. When the preset pressure is reached, the valve opens to release pressure into the atmosphere, preventing dangerous overpressure conditions that could damage system components. Calibration pressure options: 0.1, 0.15, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0 MPa Pressure deviation: 0.015 MPa for pressures up to 0.5 MPa; 3% of rated pressure for pressures above 0.5 MPa Technical specifications: Color: Gold Material: - Body: 3/4 inch brass - Control spindle: Brass - Sealing gasket: Silicone gel - Spring: SUS304 stainless steel Nominal pressure: PN10 Temperature range: 5110 C Set pressure options: 0.5, 0.6, 0.7, 0.8, 0.9, 1.0 MPa Set pressure deviation: -10% to +5% of set pressure Set temperature: 99 4 C Inlet and outlet (middle): BSPP 3/4" x 3/4" Weight: 238 g Dimensions: 83 x 42 mm Package included: 1 x Pressure Relief Valve Note: Lighting and display settings may cause slight color variations between the product image and actual item. Measurement tolerance is 13 cm.
