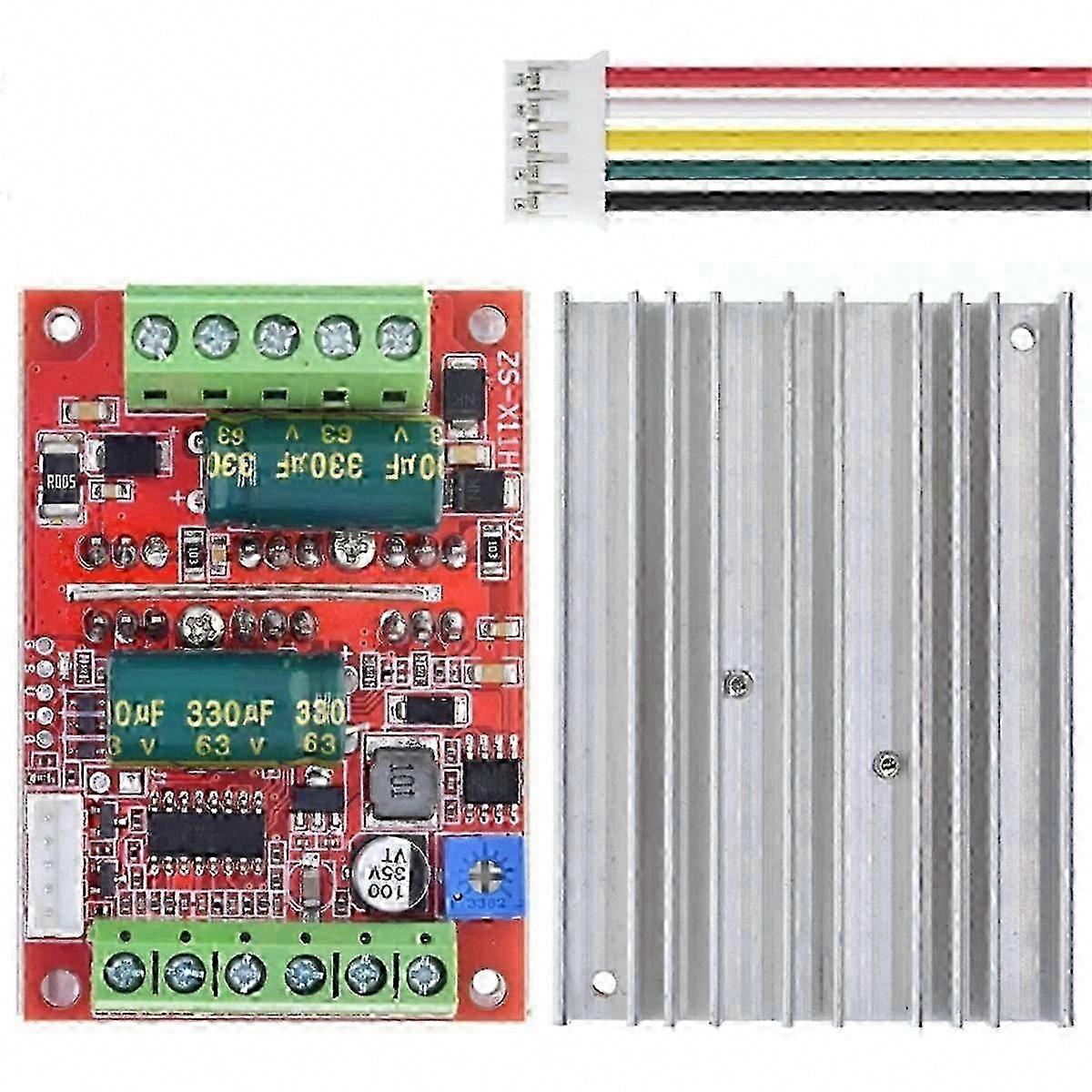

Working voltage:6-60V (limit 60V with margin for use)Working current:rated16A, 20APower:Rated 200-300W, 350W (with allowance for enhanced heat dissipation when using high power)Overcurrent protection:YesINTERFACE DESCRIPTION1. MA MB phase line output connected to motor2. The 5V GND motherboard comes with a 5V power supply (the external power supply current can not exceed 50MA)3. VCC GND main power supply (external DC power supply)4. SC speed pulse signal output (only interface reserved, no technical support provided)5. DIR direction control forward and reverse control interface (effective at low levels and can be connected to external switches to ground)6. STOP stop control interface (low level effective for grounding external switch)7. Brake control brake control interface (high level effective for 5V external switch)8. Speed regulation control speed regulation signal input (board integrated potentiometer speed regulation can also be externally connected with 0-5V analog PWM dual signal input speed regulation)9. Ha Hb +5V GND Hall signal power supply input interface, , generally motors with Hall have corresponding 5 wiresProduct Name:350W Brushless Hall DC MotorDriver Model:ZS-X11H V2Colour:As ShownMaterial:Metal+PlasticPackage Contents:1 set * motor controllerOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
