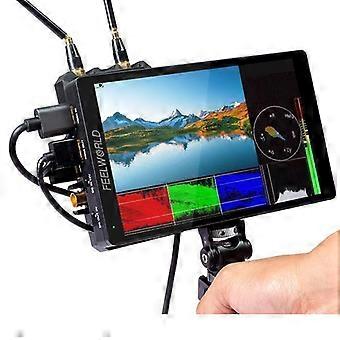

FEELWORLD F7 PRO NEW 1920x1200 7 inch LCD Screen HDMI 4K Highlight 500Nits Touch Camera Monitor Panel characteristics 1. Screen size: 7 inches IPS 2. Resolution: 1920x1200 pixels 3. Dot pitch: 0.07875 (H)x0.07875 (W) (mm) 4. Screen ratio: 16:10 5. Brightness: 500cdsquare meter 6. Contrast ratio: 1200:1 7. Backlight source: LED 8. Viewing angle: 80 degrees80 degrees (LR) 80 degrees80 degrees (UD) enter: 1. 1x HDMI: HDMI Output: 1. 1x HDMI: HDMI 2. 1x DC DC OUT 8V (outer diameter 5.5mm, inner diameter 2.1mm; can power SLR or mirrorless camera) Audio: 1. Audio: headphone jack HDMI inputoutput format: 480i576i480p576p 1080i (6059.9450) 720p (6059.94503029252423.98) 1080p(6059.94503029.97252424sF23.9823.98sF) 4K UHD 3840×2160p (60503029.97252423.98), 4096×2160p (24Hz) Other specifications: 1. Input voltage: DC7-24V 2. Power consumption: greater than or equal to 9W 3. Working temperature: -20-50 degrees Celsius 4. Storage temperature: -30-60 degrees Celsius 5. Installation method: 14-20 standard quick installation screw holes (top, left, right, bottom) 6. Stand-alone size: 175Lx105Hx22D (mm) 7. Stand-alone weight: 330g 8. Note: You need to press the power button when shutting down, and you cannot unplug the power cord directly feature: 1. Touch screen menu operation 2. F970 external power supply design can be used for external equipment installation and power supply, easy to install and disassemble, simplify the photography equipment 3. Full HD 1920x1200, high contrast: 1200:1, highlight: 500cdm2, 160 degree ultra-wide-angle IPS, good visual experience, full color reproduction display 4. Support up to 4K@60Hz HDMI input and output 5. Support HDR monitoring 6. 3D LUT Log gray film conversion Rec.709, support user 3D LUT upload 7. Full waveform display, waveform graph, vector diagram, RGB histogram, brightness histogram, auxiliary focus, zebra pattern, center mark and other functions, ca
