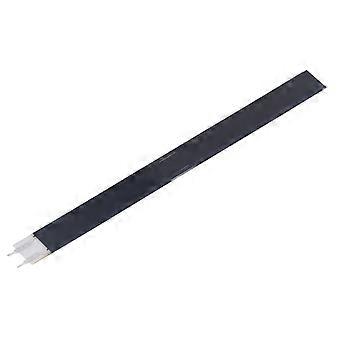

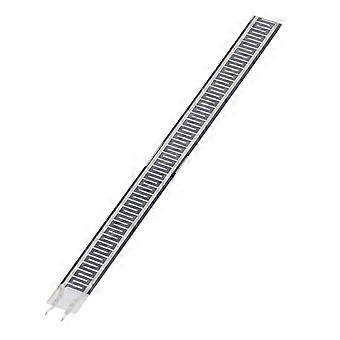

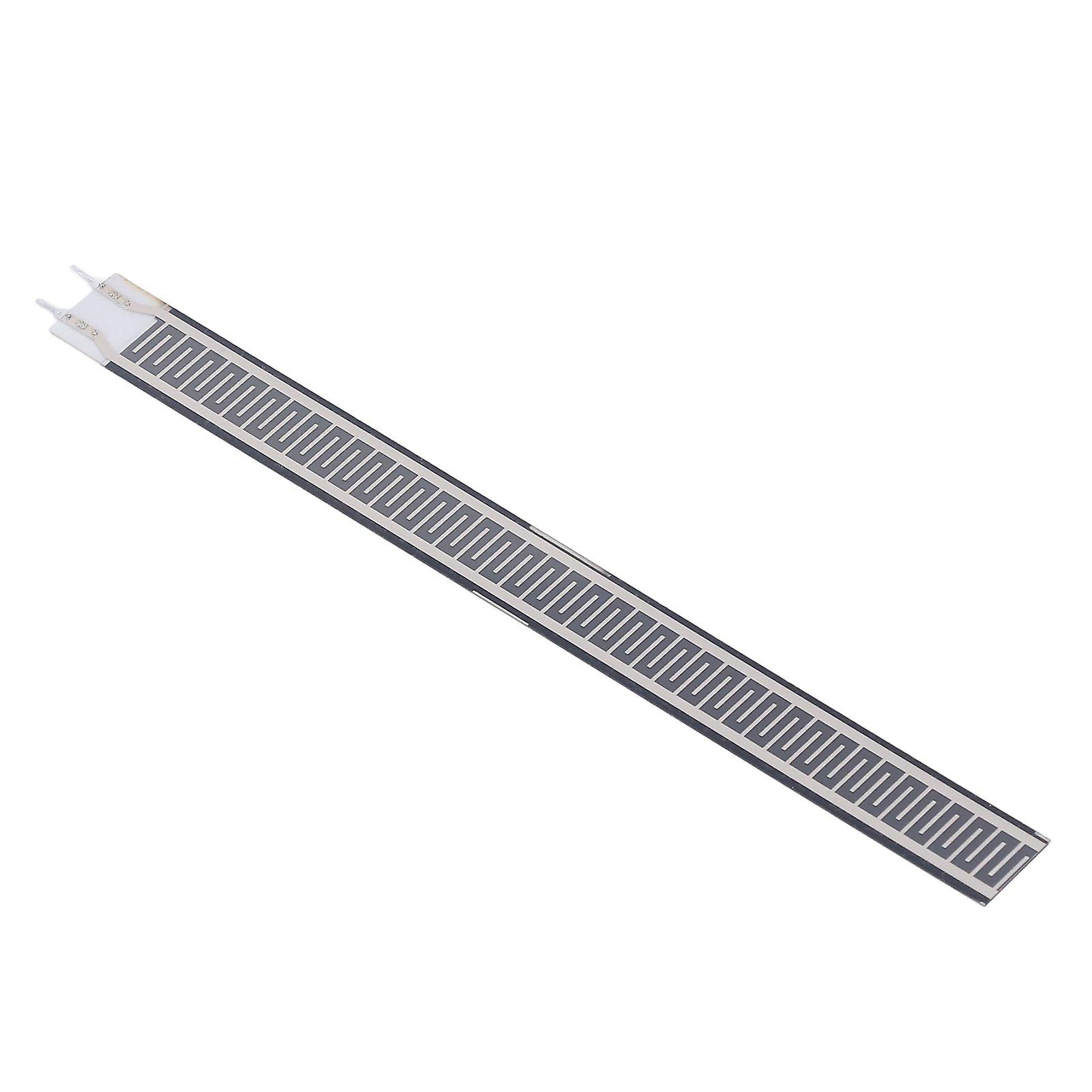

Features: 1. Ultra Thin: The flexible sensor is ultra thin, only 4mm thick, has strong inductive ability, even weak dynamic or static force can be sensed. 2. High Performance: This flexible sensor is made of polyester film with excellent comprehensive mechanical properties, has high sensitivity, timely response time, super low consumption. 3. Wide Range: This flexible film sensor can sense 20g to 10kg or more, very functional and practical and can be used in a variety of application scenarios. 4. Safe Usage: The sensor will not produce electromagnetic interference and is insensitive to electrostatic discharge, safe and reliable. 5. Wide Application: This sensor can be used for force sensing field, intelligent education, consumer electronics, intelligent health, small household appliances and more fields. Specification Item Type: Film Pressure Sensor Material: Polyester Size: Approx. 170x15mm/6.7x0.6in Pressure Sensing Range: 20g to 10kg or more Trigger Force: 20g, default trigger when resistance is less than 200kΩ Thickness: Approx. 0.4mm/0.02in Style: Flaky, flexible Resistance When Not Triggered: Greater than 10MΩ Activation Time: Less than 0.01S Hysteresis: +15%, (RF+ RF-)/FR+, 3000g force Response Time: <10ms Electromagnetic Interference EMl: No Electrostatic Discharge EDS: Insensitive Drift: <15%, 3Kg static load 24H Description: RP L resistive pressure sensor is a flexible film sensor whose resistance value decreases with the increase of pressure acting on the sensing area. A single sensing area sensor is equivalent to a dual port variable resistor whose resistance value is controlled by the pressure, which is also equivalent to a switch with a certain threshold value. The valve value is determined jointly by the pressure and equipment parameter settings. RP L flexible film pressure sensitive sensor is made of polyester film with excellent comprehensive mechanical properties. The top layer is a flexible film and a pressure sensitive layer compounded on it, and the bottom layer is a flexible film and a conductive circuit compounded on it. Both are bonded and isolated from the sensing area by double sided adhesive tape. When the sensing area is under pressure, the lines disconnected from each other at the bottom layer will be connected through the varistor layer at the top layer, and the resistance output value of the port changes with the pressure. Package List 1 x Film Pressure Sensor
