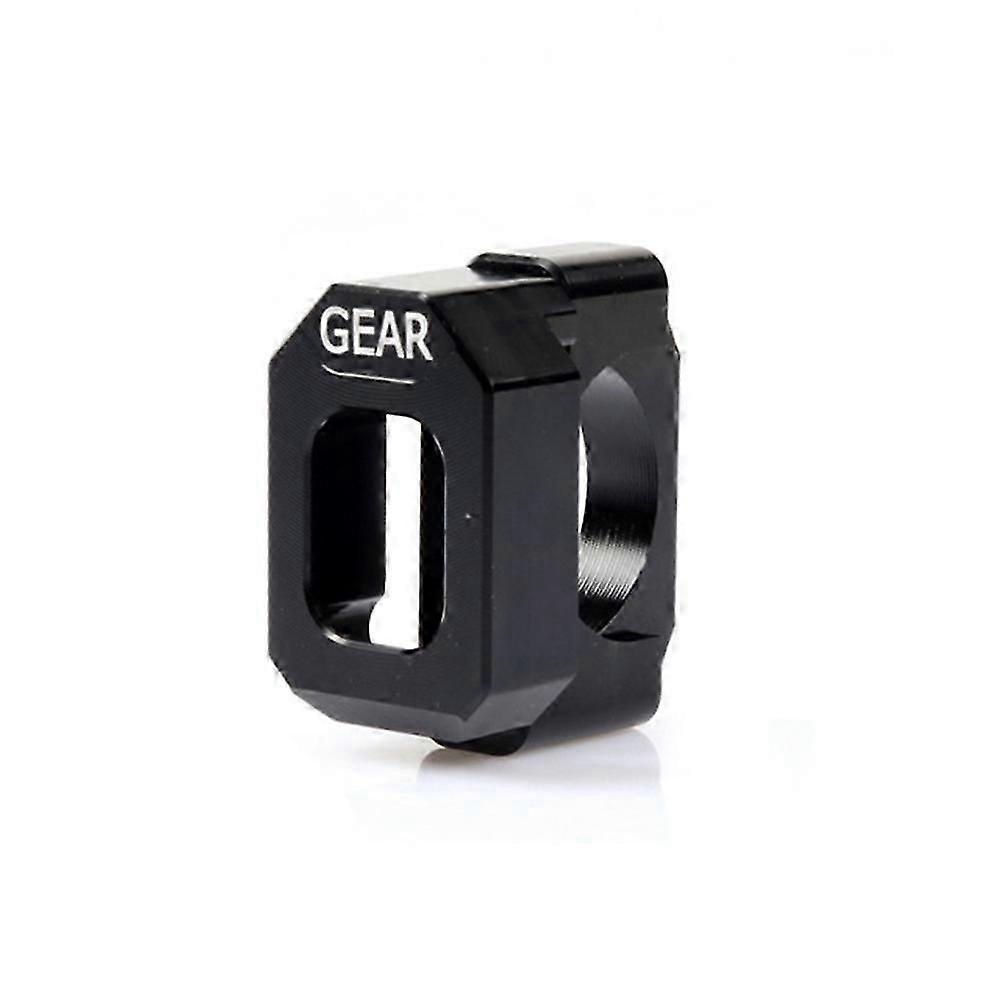

Special Note: Carefully review the product images corresponding to the options you ordered and the products described in each option before purchasing. thanks Features: Condition:100% Brand New Light Color: Red 1-6 Level Waterproof Gear display Fitment: For Suzuki GSX-R750 1996 - 2019 For Suzuki GSX-R600 1997 - 2019 K1 K2 K3 For Suzuki GSF600 Bandit 2000 - 2004 For Suzuki GSF650 Bandit 2005 - 2006 For Suzuki GSF1200 Bandit 2001 - 2006 For Suzuki XF650 Freezing 1997 - 2004 For Suzuki VL800 intruder Volusia 2001-2004 For Suzuki SV650 1999 - 2002 For Suzuki GSX1300R Hayabusa 1999 - 2007 For Suzuki GSX750F Katana 1998 - 2006 For Suzuki GSX600F Katana 1998 - 2006 For Suzuki DL650 Vstrom 2012 - 2019 For Suzuki DL650XT Vstrom 1999 - 2002 For Suzuki TL1000 R/S 1998 - 2003 For Suzuki VL1500 intruder 2013 - 2017 For Suzuki VZR1800 2011 - 2019 For Suzuki intruder c1500 2013 - 2017 For Suzuki Boulevard c90 2013 - 2019 For Suzuki GSX250R 2018 - 2019 For Suzuki GSX1000F Katana 2019 For Suzuki GSX1400 2001 - 2009 For Suzuki GSXR1000 2001 - 2016 For Suzuki GSXS750 2015 - 2019 For Suzuki GSXS750Z 2018 - 2019 For Suzuki GSXS1000 /F/A/FA 2015 - 2019 For Suzuki GSXS1000Z 2018 - 2019 Note : The product will display three modes: A, B, and C. You can switch modes by turning the power on and off. When the power is turned on, it will display 6, 5, 4, 3, 2, 1, A, L. The gear indicator can be directly on the Program in this mode, and you can program and use it correctly in this mode. If you need to switch modes, please turn off the power after L is displayed, and then turn the power back on to enter the next mode state Locate the Speed Sensor connector: The Speed Sensor is usually mounted on the front sprocket cover, and the 3-pole black speed sensor coupler (as shown in the figure) is situated 20-40 cm (8;-16;) away from sensor. The connector is accessible by raising the fuel tank, removing the seat or a side fairing(as shown in the figure) Confirmation: 1. Separate the Speed Sensor connector (you might need to use a small flathead screwdriver to get the connector apart). 2. After separating the Speed Sensor connector, plug in both the male and female 3-pole GFYSHIP harness connectors. Make sure the connectors are fully seated. 3. Find the wire that comes from the Signal generator (Pickup coil / CKP sensor). If in doubt, check the bike's Service Manual or ask your dealer. 4. Connect the Green wire to this wire, using the Red wire tap connector supplied.(The green wire is connected to the crankshaft sensor signal line) Setup: -You need to setup the module after installation. When ignition is turned on, the display counts backwards (6 to 1) indicating that the memory is clear.
