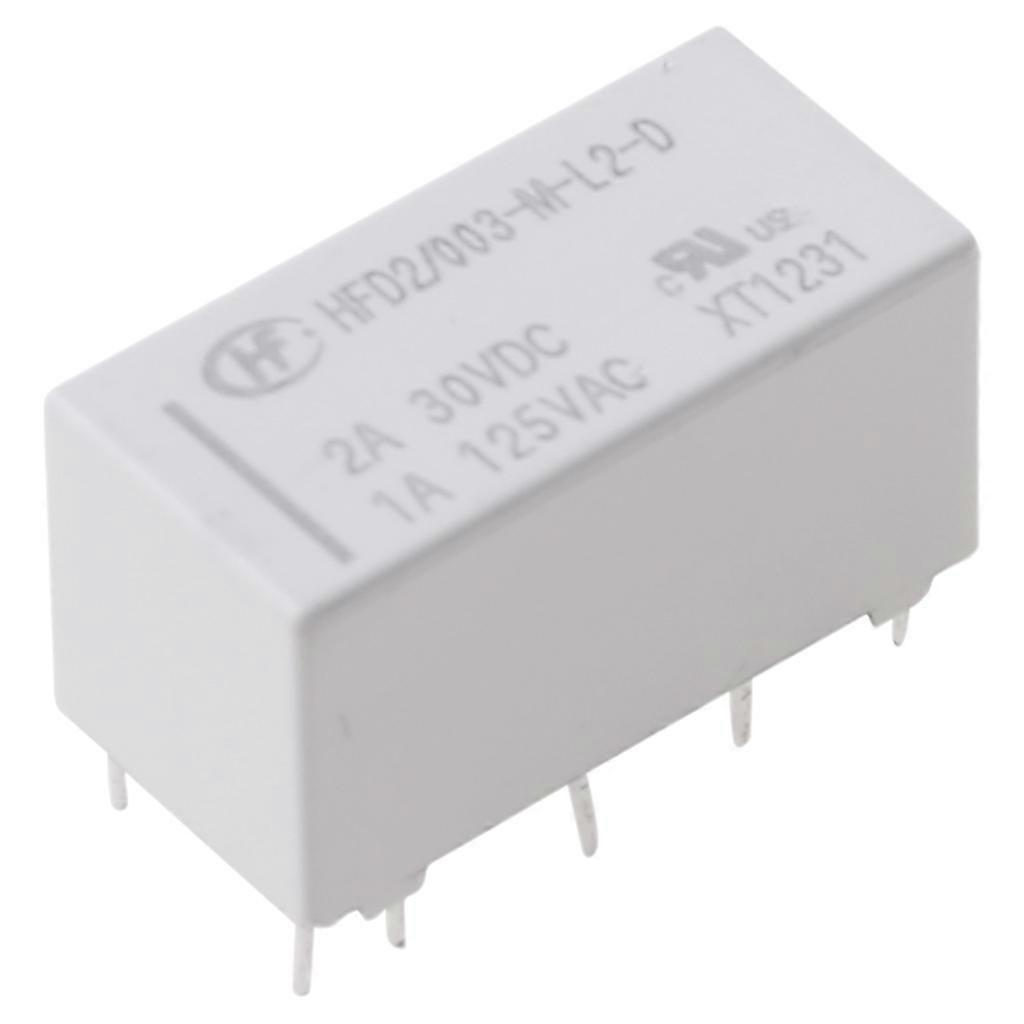

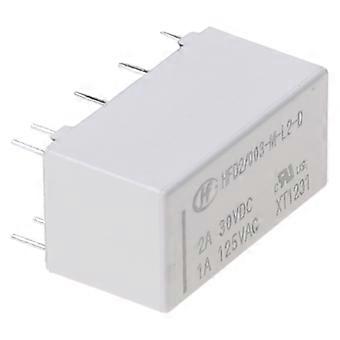

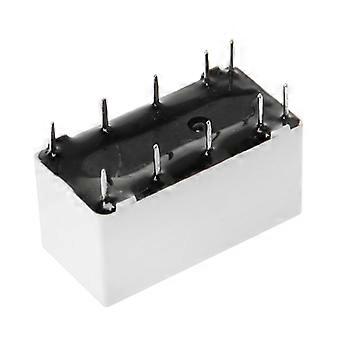

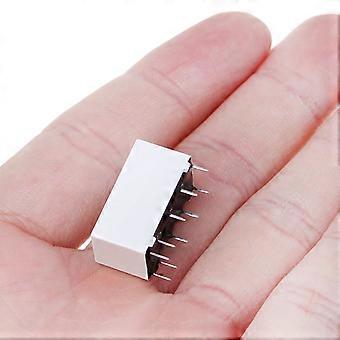

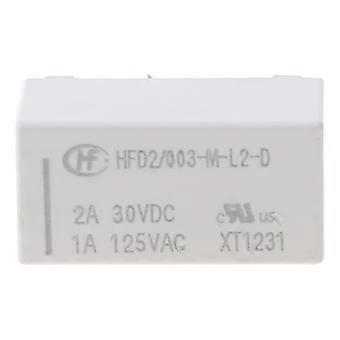

HFD2-003-M-L2-D 3V Coil Bistable Latching Relay High Quality Home Improvement Subminiature Double In-line Single Coil Description: 100% brand new and high quality Features: High sensitivity and coil power consumption of 150mW. Double in-line standard pinout. In the form of a bifurcated contact. Performance parameter: Contact form: 2Z Touch resistance 100mp (10mA 30mvDc) Contact load (resistive) 1A 125VAC. 2A 30VDC 3A 30VDC Maximum switching voltage 250VAC / 220VDC, maximum switching current 3A Maximum switching power 125VA / 90W Minimum application load 10mv 10A Insulation resistance: 1000M (500VDC) Dielectric Withstanding Voltage: Between coil and contact: 1500VDC1min (single coil), 1000VDC1min (double-line diagram) Between contacts and contacts: 1000VDC 1min Operating time (under rated voltage): 4.5ms Release time (under rated voltage): 3.5ms Operating time (magnetic holding type): 4.5ms Reversion time (magnetic hold type): 4.5ms Temperature range: 40 -85 Humidity: 5% ~ 85% RH Vibration: 10Hz ~ 55Hz 1.5mm double amplitude Impact: stability 490m / s, strength 980m / s Terminal method: Printed board (DIP) Specification: Type: Latching Relay Material: Plastic Features: Latching Relay, Coil Bistable, Subminiature, High Quality, Home Improvement, In-line Single Coil Dimension: app.2x1x1cm/0.79x0.39x0.39in Color: White Quantity: 1 Pc Note: 1.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid. 2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you! Package includes: 1 Pc x Latching Relay
