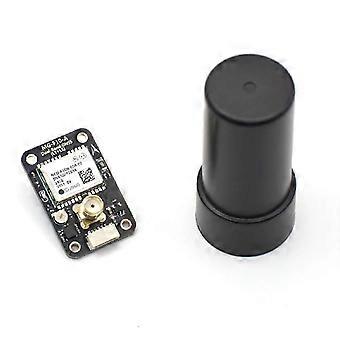

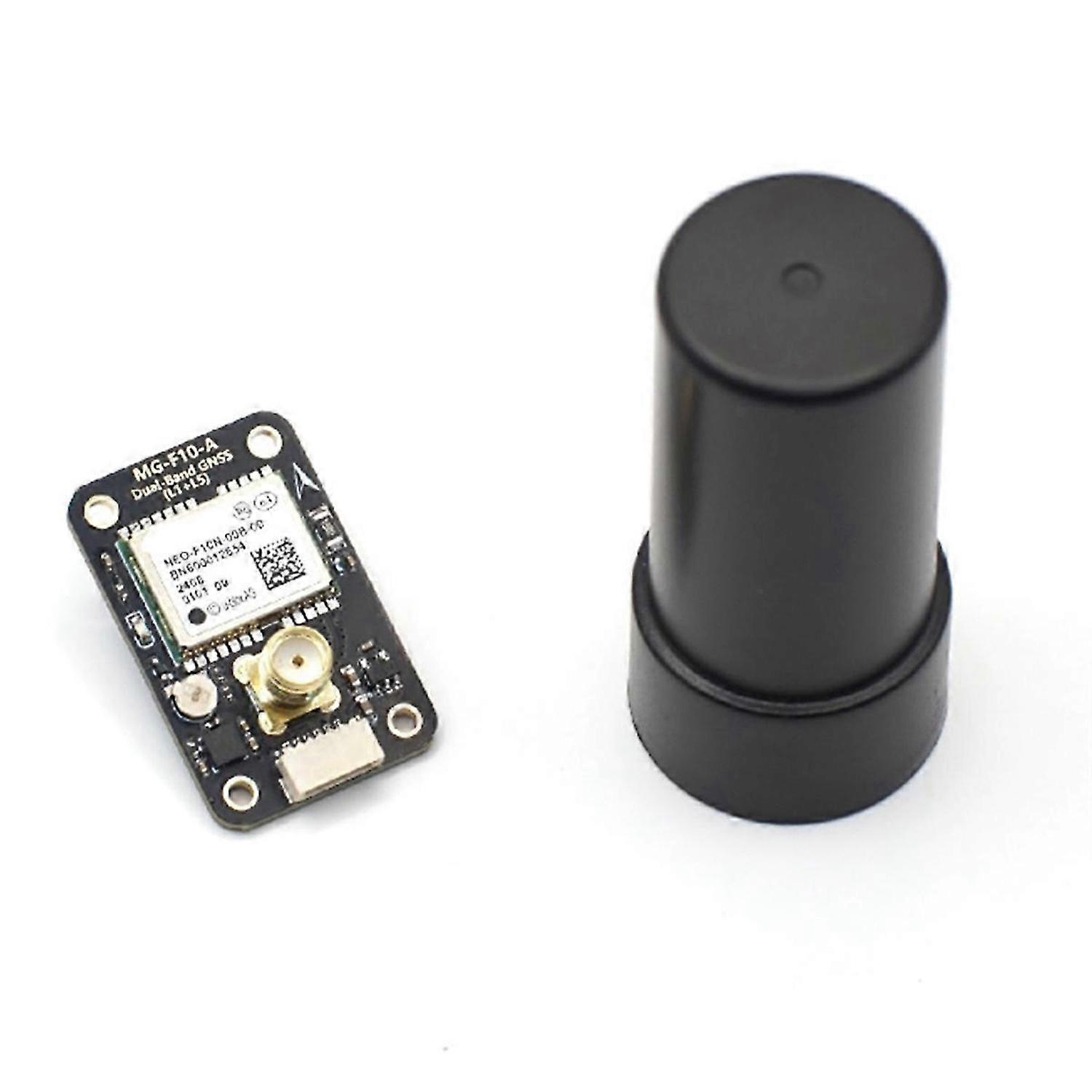

MG-F10 Dual Band (L1+L5) GNSS Module with Compass IST8310 MicoAir Tech MG-F10 for Drones

R1 899,00
+ R131,49 Shipping

MG-F10 Dual Band (L1+L5) GNSS Module with Compass IST8310 MicoAir Tech MG-F10 for Drones

  • Brand: Unbranded
  • product image
  • product image
  • product image
  • product image
  • product image
MG-F10 Dual Band (L1+L5) GNSS Module with Compass IST8310 MicoAir Tech MG-F10 for Drones

MG-F10 Dual Band (L1+L5) GNSS Module with Compass IST8310 MicoAir Tech MG-F10 for Drones

  • Brand: Unbranded
RRP: R4 399,00
Price: R1 899,00
You save: R2 500,00 (56%)
Sold by:
R1 899,00
+ R131,49 Shipping

In stock

We accept the following payment methods

Description

MG-F10 Dual Band (L1+L5) GNSS Module IST8310 Compass Sensor. Quad Helix Antenna Supports L1+L2+L5 38dB Gain LNA Integrated with the latest generation of receiver: NEO-F10N Supports GPS+BeiDou++NavlC combination Supports L1(1575MHz)+L5(1176MHz) dual band combination<br><br>GNSS Receiver:UBX NEO-F10N Compass:IST8310 Concurrent:GPS/QZSS, Galieo, BeiDou, NavlC Max Navigation rate:10Hz Positioning Accuracy:1.0m Toggle Speed:Cold start 28s, Hot start 2s Sensitivity: &Navigation:-167dBm Re-capture:-159dBm Hot start:-159dBm Cold start:-148dBm Hot Start Support:Equipped with backup battery and supports hot start UART Baudrate:38400 (Chip Default); 115200 (Factory Default) Output Level:3.3V TTL level Output Protocol:NMEA (Chip Default); UBX-PVT (Factory Default) FLASH:Power off can save parameters Height Limit:less than equal 80000m Speed Limit:less than equal 500m/s Acceleration Limit:less than equal 4g Working Voltage:5V Working Current:55mA@5V (with Antenna) Working Temperature:-40℃-+85℃ Connector:SH1.0-6P 1.0mm pitch LED:Blue (Solid ON after powering on, blinking(1Hz) when GNSS get 3D fix) Product Weight:21g(with Antenna) Product Size:22x34x13.4mm Antenna Size:28x28x59.3mm Due to different product batches, the appearance , which does not affect the use. Colour:As Shown Material:PC+Plastic<br><br>Package Contents: 1 * module 1 * antenna 1 * cable<br><br>Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
  • Fruugo ID: 417582352-880905426
  • EAN: 6921465766161
