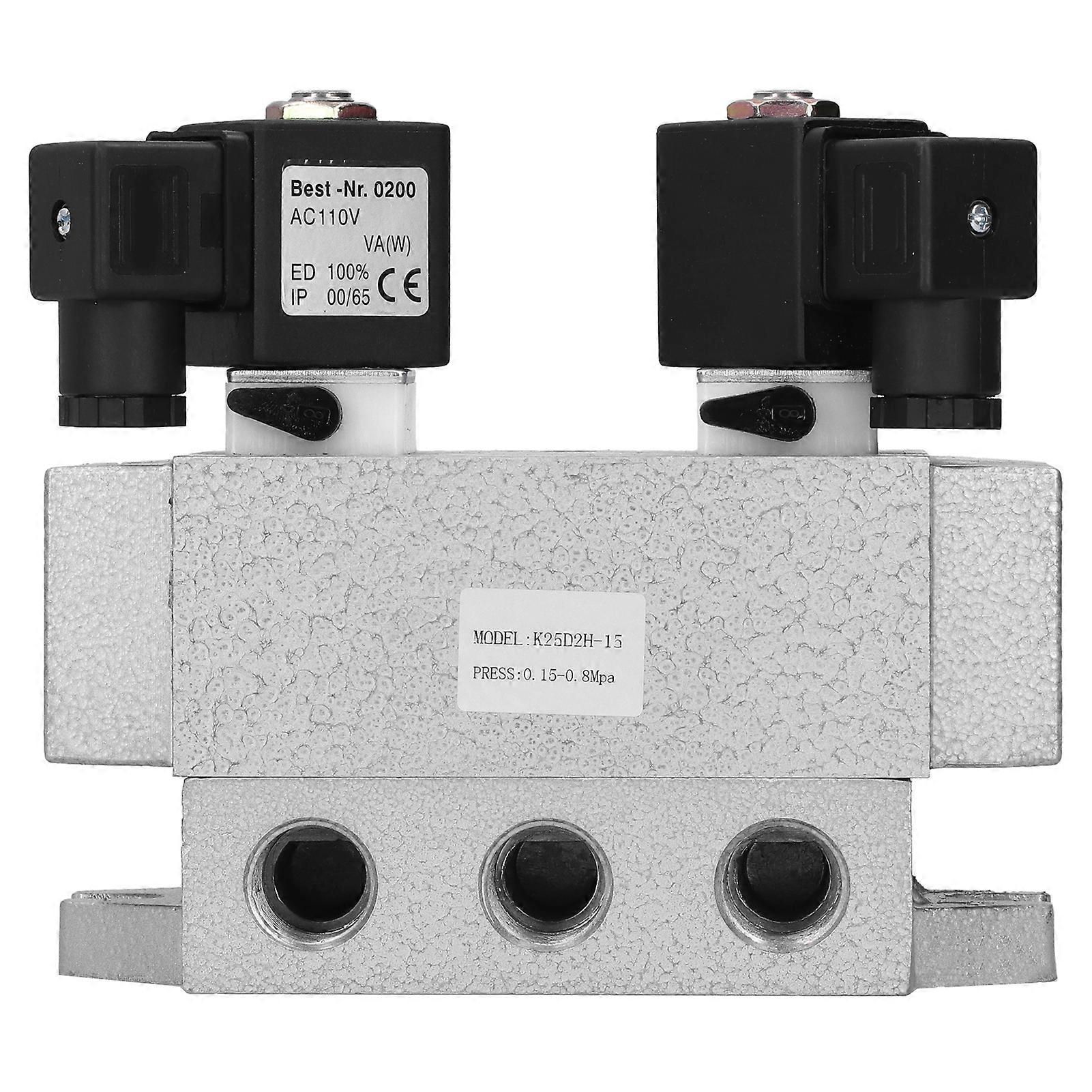

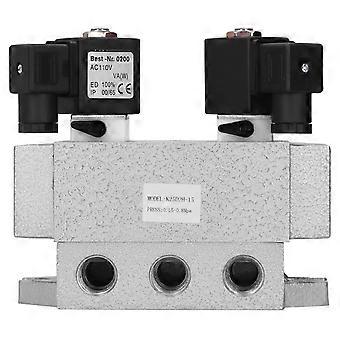

Item Type: Pneumatic Solenoid Valve Material: Aluminum alloy Model: K25D2H-15 Interface Diameter: G1/2in Pressure: 0.150.8mpa Reversing Time: 0.08s Maximum Allowable Commutation Frequency: 6Hz Drain Flow: 100cm/min Ambient Temperature: -5--50 Medium Temperature: -5--50 Life: 1500 thousand times How to Use: 1. "P" is engraved in the product, "A", "B" are working cavity, "O1" and "O2" are exhaust cavity. 2. The control power cord is connected to the junction box of the coil. 3. During debugging or power failure, manual operation can be used (manual switch "0" position is off, "1" position is on). 4. The inside and outside of the pipe must be cleaned during installation, and then the dust cap must be removed. 5. Suitable to disassemble and wash or add some lubricating oil if it has been stored for a long time or used for a long time or is not flexible. ModelPort Size(approx. )CDEFGHIJL K25D2H-15G1/2in( M20 x 15)171mm / 6.7in19mm / 0.7in14mm / 0.6in38mm / 1.5in146mm / 5.7in164mm / 6.5in165mm / 6.5in9mm / 0.4in74mm / 2.9in Package List 1 x Pneumatic Solenoid Valve 1The spacer sleeve valve structure adopted by the product is very reliable in performance. 2Wide range of applications, can be used in a variety of industries and maintenance industries, etc. 3The solenoid valve has a compact structure and an automatic compensation function for sealing wear. 4The product with greater flow capacity, it can meet the needs of large flow media. 5The base plate uses a takeover structure to make installation and maintenance work more convenient.
