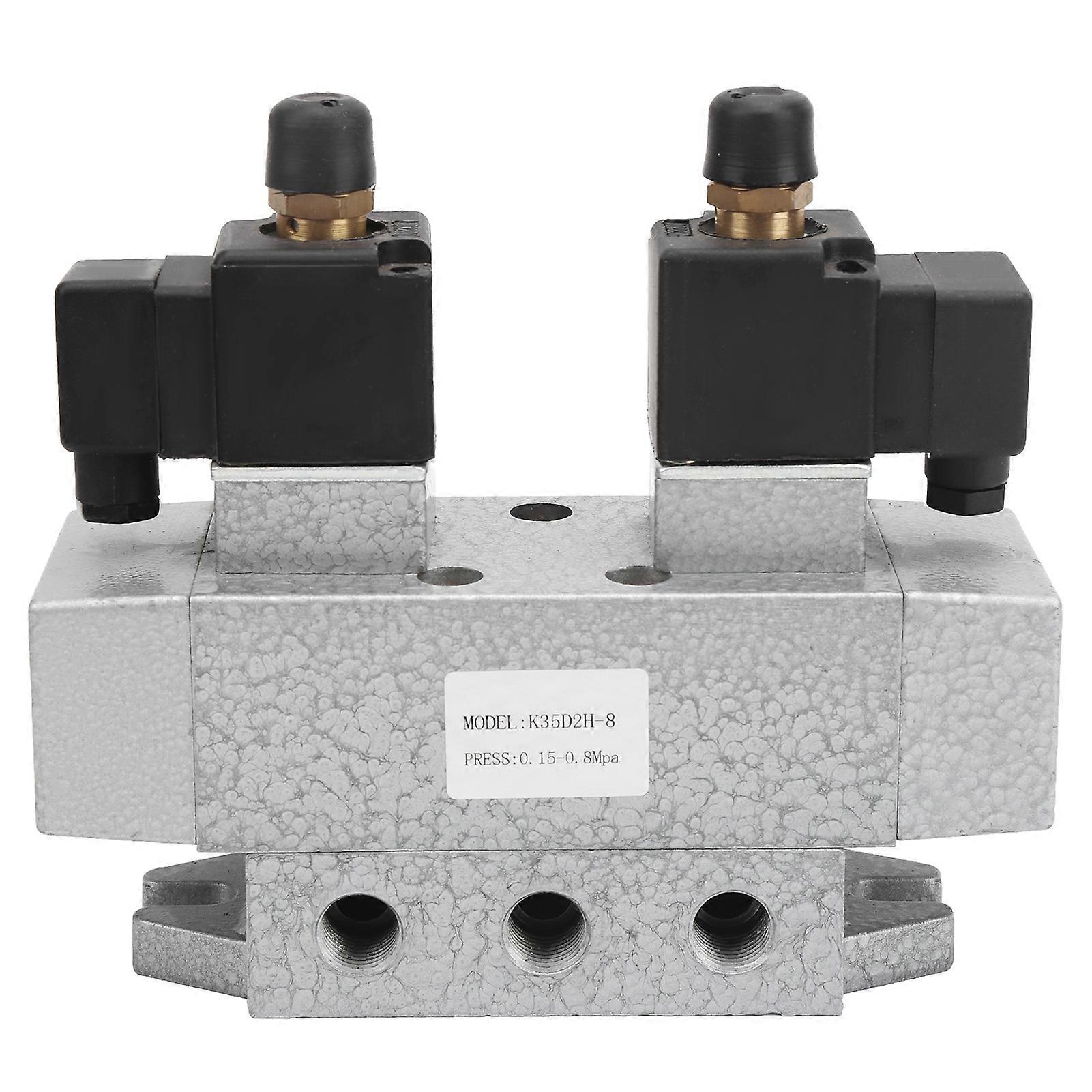

Item Type: Pneumatic Solenoid Valve Material: Aluminum alloy Model: K35D2H-8 Interface Diameter: G1/4in Pressure:0.20.8mpa Reversing Time: 0.06s Maximum Allowable Commutation Frequency: 8Hz Drain Flow: 50cm/min Ambient Temperature: -5--50 Medium Temperature: -5--50 Life: 1500 thousand times How to Use: 1. Engraved with "P" in the product is the intake cavity, "A", "B" are the working cavity, and "O1" and "O2" are the exhaust cavity. 2. The control power cord is connected to the junction box of the coil. 3. During debugging or power failure, manual operation can be used (manual switch "0" position is off, "1" position is on). 4. The inside and outside of the pipe must be cleaned during installation, and then the dust cap must be removed. 5. Suitable to disassemble and wash or add some lubricating oil if it has been stored for a long time or used for a long time or is not responsive. ModelPort Size(approx. )CDEFGHIJL K35D2H-8G1/4in( M12 x 1.25)153mm / 6in14mm / 0.6in10mm / 0.4in28mm / 1.1in112mm / 4.4in130mm / 5.1in136mm / 5.4in9mm / 0.4in56mm / 2.2in Package List 1 x Pneumatic Solenoid Valve 1 x User Manual 1The spacertype spool valve structure adopted is very reliable in performance. 2In the structural design of the solenoid valve, there is an automatic compensation function for sealing wear. 3Can meet the needs of large flow media to pass, and has a larger flow capacity. 4The structure is compact, and the base plate also uses a takeover structure, which makes installation and maintenance work more convenient. 5Divided into 2position 5way and 3position 5way in function subdivision, in terms of control mode, is divided into single and double air control and single and double air control introduced from the bottom plate. 6Another point is very important, the solenoid valve has a long service life while having strong performance.
