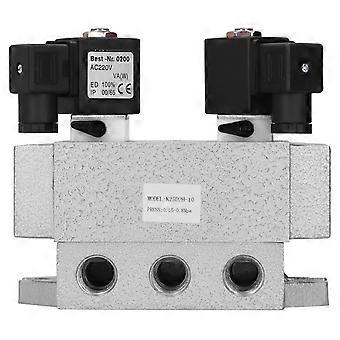

Item Type: Pneumatic Solenoid Valve Material: Aluminum alloy Model: K25D2H-10 Interface Diameter: G3/8in Pressure: 0.150.8mpa Reversing Time: 0.08s Maximum Allowable Commutation Frequency: 6Hz Drain Flow: 100cm/min Ambient Temperature: -5--50 Medium Temperature: -5--50 Life: 1500 thousand times How to Use: 1. "P" is engraved in the product, "A", "B" are working cavity, "O1" and "O2" are exhaust cavity. 2. The control power cord is connected to the junction box of the coil. 3. During debugging or power failure, manual operation can be used (manual switch "0" position is off, "1" position is on). 4. The inside and outside of the pipe must be cleaned during installation, and then the dust cap must be removed. 5. Suitable to disassemble and wash or add some lubricating oil if it has been stored for a long time or used for a long time or is not flexible. ModelPort Size(approx. )CDEFGHIJL K25D2H-10G3/8in( M16 x 15)171mm / 6.7in19mm / 0.7in14mm / 0.6in38mm / 1.5in146mm / 5.7in164mm / 6.5in165mm / 6.5in9mm / 0.4in74mm / 2.9in Package List 1 x Pneumatic Solenoid Valve 1Very reliable in performance, due to the spacertype slide valve structure adopted by this solenoid valve. 2Solenoid valves are widely used in many fields, and there is an automatic compensation function for seal wear in the structural design. 3This solenoid valve has a larger flow capacity and is suitable for use in working media with larger flow. 4The structure of the solenoid valve is compact, and the base plate uses a takeover structure, which makes installation and maintenance work more convenient. 5Strict quality control and quality assurance, high safety factor, can be used with peace of mind.
