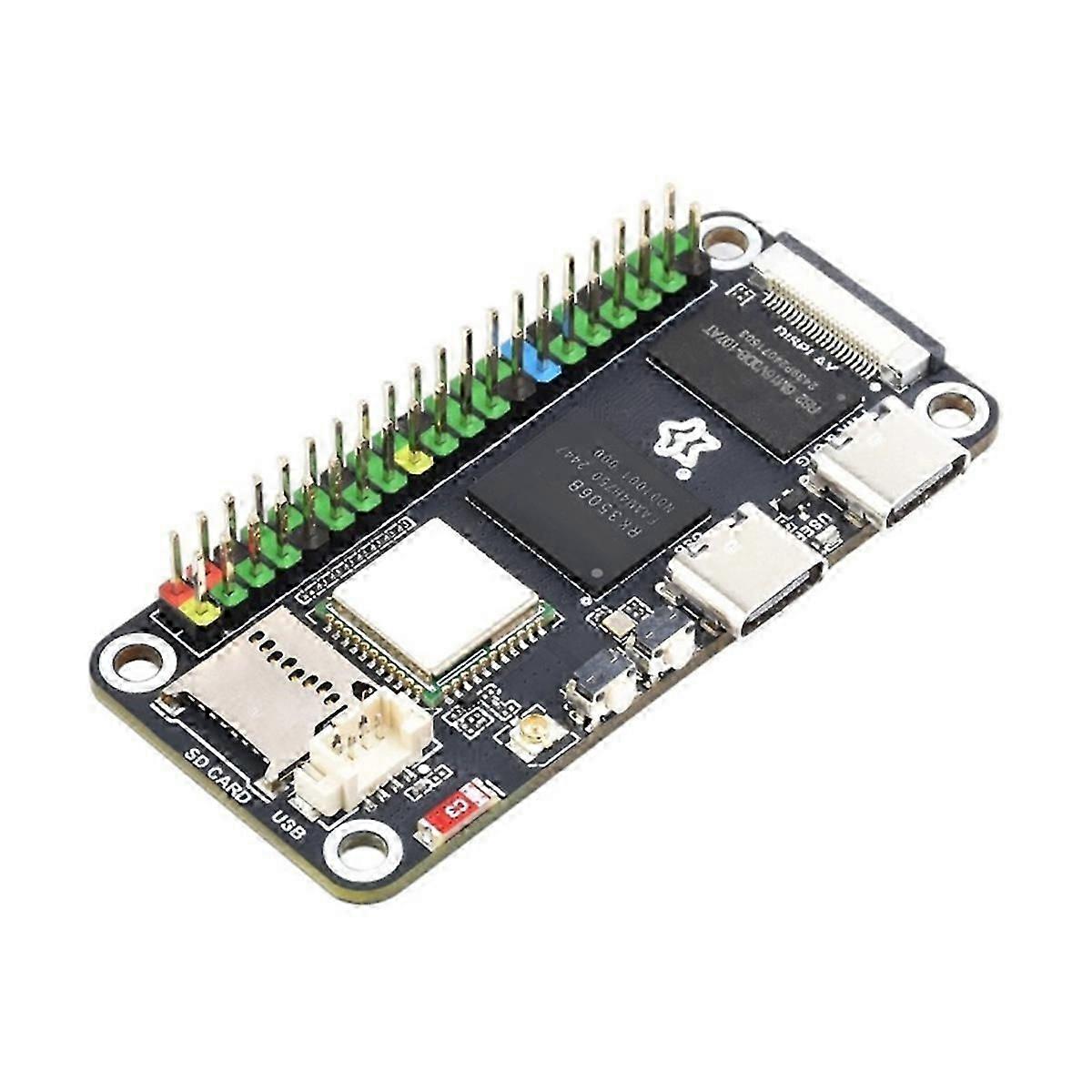

Zero W Mini Linux Development Board Based on RK3506B Chip, Integrated with Triple-Core Arm -A7
Zero W Mini Linux Development Board Based on RK3506B Chip, Integrated with Triple-Core Arm -A7

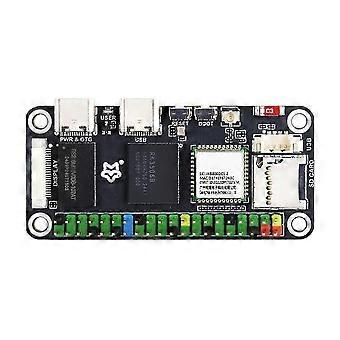

Zero W is a Linux mini development board powered by the Rockchip RK3506B to provide a simple and efficient development platform for developers.

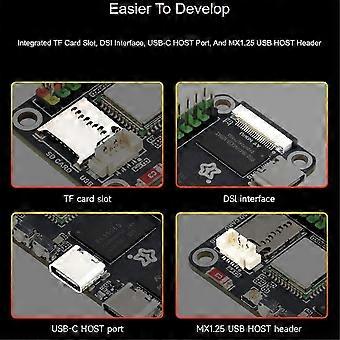

Onboard multiple high-speed interfaces including MIPI , SDMMC, USB, etc. to meet application scenarios.
The low-speed interfaces utilize Rockchip Matrix IO design which supports multiplexing 98 function signals on GPIO pins, allows for flexible configuration of interfaces like PWM, UART, I2C, SPI, and I2S for quick development and debugging.
Integrated wireless communication module, suitable for IoT communication scenarios such as smart home and industrial control.
Triple-core ARM -A7 32-bit core, with integrated to support single-precision and double-precision floating-point operations.
Built-in ARM -M0 MCU design, supports and AMP configuration.
Supports DDR3L memory interface expansion, meeting expansion needs.
The low-speed interfaces adopt Rockchip Matrix IO design, which allows rich function signals to share the limited chip pins, making peripheral circuit adaptation more flexible.
Supports multiple audio inputs and outputs, providing high-quality audio playback and recording functions.
Specifications:
Model: Zero W
Processor: Triple-core Arm -A7 (1.2GHz) + Arm -M0
Memory: Onboard 512MB DDR3L
USB: USB OTG 2.0 x 1
HUB expanded: USB HOST 2.0 x 2
Display Interface: MIPI 2-

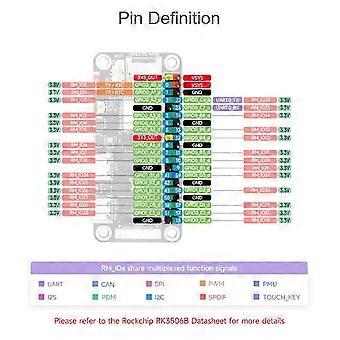

GPIO: 28 x Rockchip Matrix IO pins
Default Storage: SPI NAND FLASH (256MB)

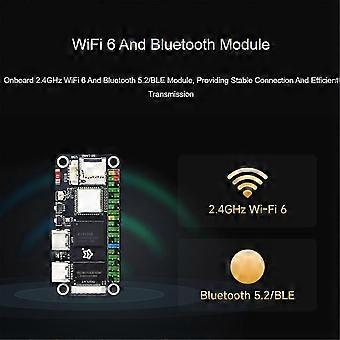

Wireless communication: Onboard 2.4GHz Wi-Fi 6 / Bluetooth 5.2 / BLE
Color: Black
Material: PCB+Components
Package Contents:
1 x Development Board
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
-
